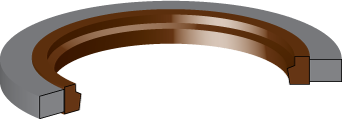

STYLE CTC-KR ROD BUFFER SEALS




SEAL INFORMATION
MATERIAL BRONZE PTFE BUFFER, RUBBER ENERGIZER
TEMPERATURE RANGE -40° to +220° F
SPEED 1.5 FT/SEC
PRESSURE RANGE 0 to 5,000 PSI
PART NUMBER (Prefix)(CS) - (Inside Dia) - (O-Ring CS)

Molded in Bronze filled PTFE with a rubber energizer, this heavy duty buffer seal is ideal for heavy duty service to protect the primary seal from damage caused by pressure spikes and excessive heat build up.

These part #'s are specific to Caterpillar® equipment.



Part #

A - Nom. I.D.

B - Nom. O.D.

C - Nom. Height

D - Groove Width

E - Rod Diameter

G - Housing Diameter

List
Price

BRS-17502

1-3/4

2.174

.166

.166

1.750

2.174

$27.41

BRS-20003

2

2.616

.247

.247

2.000

2.616

$36.27

BRS-25003

2-1/2

3.116

.247

.247

2.500

3.116

$41.39

BRS-27503

2-3/4

3.366

.247

.247

2.750

3.366

$42.67

BRS-30003

3

3.616

.247

.247

3.000

3.616

$44.01

BRS-32503

3-1/4

3.866

.247

.247

3.250

3.866

$45.01

BRS-35003

3-1/2

4.116

.247

.247

3.500

4.116

$47.08

BRS-45003

4-1/2

5.116

.247

.247

4.500

5.116

$54.65

BRS-50003

5

5.616

.247

.247

5.000

5.616

$65.23
